๐ก Key Summary: Portable Point Sensor Calibrator for On-Site Setup & Inspection Without External Power

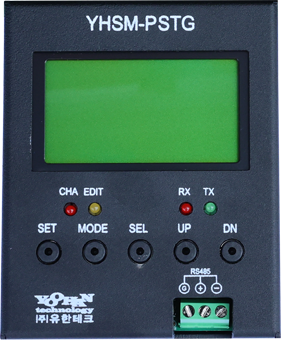

YHSM-PSTG is a battery-powered portable setting and calibration device for point-type leak sensors. Once a sensor is connected, operators can check status on the LCD and perform sensitivity setting (fine adjustment) and inspection based on on-site conditions. It enables fast maintenance and commissioning even in areas where power is not readily available.
Portable Inspection & Setup Tool for On-Site Configuration and Calibration
Setting & Inspection Controller for All-in-One Electronic Leak Point Sensors
For commissioning after installation, periodic inspections, or re-setup after sensor replacement, the biggest bottlenecks are usually โpower availabilityโ and โbringing the right setup tools.โ YHSM-PSTG runs independently on an internal rechargeable battery, allowing operators to check sensor status and set sensitivity on site even in areas without power.
๐ Independent Field Operation Without Power Constraints
โข Built-in rechargeable battery enables on-site setup and inspection without external power. (Up to 12 hours of continuous use on a full charge)
โข Battery level can be checked on the LCD to help plan field work.
๐๏ธ Status Check & Sensitivity Setting (Fine Adjustment)
โข View device status and setting values on the LCD monitor (33ร60mm) directly in the field.
โข Fine-tune sensitivity to match site conditions (humidity, washdown, temperature, surface condition, etc.) to reduce false alarms and missed detections.
๐ Compatible Devices & Auto Recognition
โข Supports setup and inspection for All-in-One Point Sensors (YHSM-A01 / YHSM-AR01).
โข Also works with 1-Channel Control Modules (YHSM-01S series) to expand the scope of setup and inspection tasks.
โข Automatically detects the connected device type, allowing work to start without complex setup.
"YHSM-PSTG reduces on-site setup and inspection time,
and helps standardize sensor maintenance and commissioning procedures."
| Model | Type | Detection Targets |
| YHSM-A01 | All-in-One Electronic Leak Point Sensor | For Solvent & Oil | Oils, engine oil, OMCTS, tar oil, MDI, TDI, TDA, insulating oil, VOC-related liquids, etc. (Does not react to water) |
| YHSM-AR01 | All-in-One Electronic Leak Point Sensor | For Acid/Alkali & Inorganic Solutions | Acid/alkali and inorganic-solution based chemicals (Does not react to water) (Water-reactive configuration available upon request) |
| YHSM-01S-A | 1-Channel Leak Detection Control Module | For Solvent & Oil | Oils, engine oil, OMCTS, tar oil, MDI, TDI, TDA, insulating oil, VOC-related liquids, etc. (Does not react to water) |
| YHSM-01S-AR | 1-Channel Leak Detection Control Module | For Acid/Alkali & Inorganic Solutions | Acid/alkali and inorganic-solution based chemicals (Does not react to water) (Water-reactive configuration available upon request) |
| Item | Specification |
| Model | YHSM-PSTG (All-in-One Leak Point Sensor Calibrator) |
| Charging Power | DC 5V 2A |
| Charging Port | microUSB (5-pin) |
| Operating Temp./Humidity | 0โ40ยฐC / 0โ80% RH |
| Dimensions (WรH) | 86 ร 141mm (Optimized for portability) |
| Key Functions | โข Status monitoring: view settings and status on LCD (33ร60mm) โข Precision sensitivity adjustment for all-in-one electronic leak point sensors โข RS-485 communication: data communication with sensors and 1-channel control modules (YHSM-01S series) โข Auto detection: automatically recognizes connected sensor/module type โข Standalone operation: high-capacity internal battery for power-free field use |
