๐ก Key Summary: Replaceable Floor Sensor Cartridge for Reusing the Existing Sensor Body

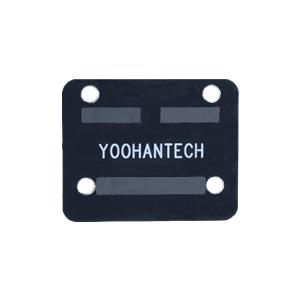

YHS-FS is a replaceable floor sensor cartridge for YHSP-SA, YHSP-SA-Ex and YHSM-A01 leak point sensors. It allows replacement of only the lower sensor cartridge while reusing the existing sensor body, helping reduce maintenance costs. It is made of FR-4, copper and carbon and measures 54 ร 44 mm with a thickness of 1.6 mm.
A replacement cartridge for compatible electronic leak point sensors.
YHS-FS Floor Sensor Cartridge allows reuse of the existing sensor body.
By replacing only the lower sensor cartridge, it helps reduce maintenance costs.
โ๏ธ Dedicated Sensor Compatibility
โข Compatible with YHSP-SA, YHSP-SA-Ex and YHSM-A01 leak point sensors.
โข Verify sensor compatibility before use.
๐ก Reduced Maintenance Cost (Cost Saving)
โข Reuse the existing sensor body and replace only the lower sensor cartridge (YHS-FS).
โข Replacing the cartridge while retaining the sensor body helps reduce maintenance costs.
๐ง Cartridge Dimensions & Materials
โข Measures 54 ร 44 mm with a thickness of 1.6 mm. Materials: FR-4, copper and carbon.
| Type | Category | Model | Cartridge Function |
|---|---|---|---|
| Separate Type (Module required) |
Electronic leak point sensorย | YHSP-SA |
Lower sensor cartridge replacement ย (Reuses the existing sensor body) |
| Intrinsically Safe electronic leak point sensor | YHSP-SA-Ex | ||
| All-in-One (Module built-in) |
All-in-one electronic leak point sensor | YHSM-A01 |
| Item | Details |
|---|---|
| Model | YHS-FS |
| Product | Floor Sensor Cartridge |
| Primary Function | Lower sensor cartridge replacement |
| Material | FR-4, copper, carbon |
| Dimensions (W ร H) | 54 ร 44 mm |
| Thickness | 1.6 mm |
| Compatible Sensors | YHSP-SA, YHSP-SA-Ex, YHSM-A01 |
