๐ก Key Summary: All-in-One electronic leak point sensor with optimized detection by chemical family for organic solvents & oils
YHSM-A01 is an All-in-One electronic leak point sensor that operates on DC 24 V without a separate control module. It provides chemical-family specific detection of organic solvents and oil-based chemicals, with no response to water. It detects leaks within 2 to 60 seconds, depending on the chemical. Integrated SSR alarm output (N/O) and RS-485 (YH-BUS) communication support equipment integration. The replaceable YHS-FS cartridge allows reuse of the sensor body and reduces maintenance costs.
๐ง All-in-One Organic Solvent & Oil Leak Detection Sensor | YHSM-A01
Optimized detection by chemical family with a built-in controller for fast on-site equipment integration.
YHSM-A01 is an All-in-One electronic leak point sensor for the organic solvent and oil chemical family. It integrates power input, alarm output and communication for standalone operation. It provides SSR alarm output (N/O) and RS-485 (YH-BUS) communication without a separate control module.
Core Technology of YHSM-A01 (Key Technology)
๐ก Smart All-in-One Design (All-in-One Design)
โข The all-in-one design integrates power input, alarm output and communication for standalone operation. It uses DC 24 V and requires no separate control module.
๐ฌ Optimized Detection by Chemical Family
โข Designed for chemical-family specific detection of organic solvents and oils without responding to water. Typical media include THF, acetone, IPA, toluene, MEK and xylene.
โก๏ธ Fast Detection & Response
โข Detects leaks within 2 to 60 seconds, depending on the chemical.
๐ง Replaceable Sensor Cartridge (YHS-FS)
โข Replace only the YHS-FS floor sensor cartridge if required and reuse the sensor body. This supports quick on-site replacement and reduced maintenance costs.
๐ก๏ธ RS-485 (YH-BUS) Communication
โข Provides an RS-485 (YH-BUS) communication interface for a host monitoring system (PLC / DCS / SCADA). Status indicators are RXD, TXD, POWER and LEAK.
With its built-in controller, YHSM-A01 simplifies installation and supports efficient deployment of a chemical-family specific organic solvent & oil leak monitoring system.
Product Downloads
Watch Real Leak Detection Test Videos
View test footage verified under real leak conditions, including sensor response and alarm operation.
| Item | Details |
| Model | YHSM-A01 |
| Product Type | All-in-One Electronic Leak Point Sensor |
| Target Liquids |
Organic Solvents and Oils |
| Power Input | DC 24 V |
| Alarm Output | SSR Alarm Output (N/O) |
| Communication | RS-485 (YH-BUS) |
| System Design | Integrated power input, alarm output and communication |
| Status Indicators | RXD / TXD / POWER / LEAK |

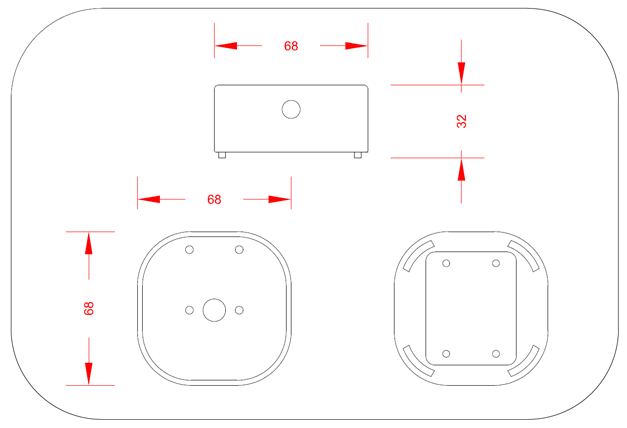

| Dimensions | 68 ร 68 ร 32 (ยฑ0.5) mm |
| Operating Temperature | -20 to +55 ยฐC |
| Operation | Standalone operation without a control module |
| Response Time | 2 to 60 seconds (depending on the chemical) |
| Typical Applications | Pipes and valves; chemical storage tanks and areas; floors and trays; production lines and equipment |
| Typical Detection Media | THF (Tetrahydrofuran); Acetone; IPA (Isopropyl Alcohol); Toluene; MEK (Methyl Ethyl Ketone); Xylene; Other Organic Solvents and Oil-Based Chemicals |
| Product Features | โข Chemical family detection: organic solvents and oil-based chemicals โข No response to water; response time of 2 to 60 seconds, depending on the chemical โข Standalone operation with SSR alarm output (N/O) and RS-485 (YH-BUS) communication โข Replaceable YHS-FS cartridge: reuse the sensor body and reduce maintenance costs |
Industry-Specific Leak Detection Proposals
Semiconductors ยท Petrochemicals ยท Oil Refining ยท Batteries ยท Power Generation ยท Steel ยท Warehousing ยท Wastewater Treatment ยท Defense
View Installation Case Studies
Explore real industrial leak detection installations and get guidance on a configuration that fits your facility.
ย
ย
|
๐นYHSM-PSTG (Calibration Device for All-in-One Leak Point Sensors, Optional) |
๐นYHWS-P01 (Position Marking Base, Optional) |
|
๐นYHS-FS (Replacement Sensor Cartridge) |
๐นYHBK-P02 (Point Sensor Protective Housing, Optional) |
ย
ย
 |
|

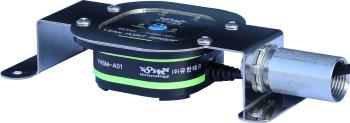

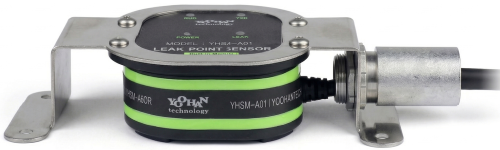

[Electronic Leak Point Sensor Housing Assembly Example]
