๐ก Key Summary: Electronic leak point sensor with optimized detection by chemical family for acids, alkalis & inorganic solutions
YHSP-SAR is an electronic liquid leak point sensor designed for chemical-family specific detection of acids, alkalis, and inorganic solutions. It quickly detects floor leaks while reducing unnecessary alarms in water-exposed environments (rain, condensation, etc.), improving operational efficiency. With a structure that can be washed and reused, it helps reduce maintenance burden. When used with a dedicated controller module, it enables real-time monitoring of leak events, making it suitable for chemical spill prevention and building a reliable safety monitoring system.
On-site monitoring solution to help prevent chemical incidents: electronic leak point sensor
YHSP-SAR: Optimized detection by chemical family for acids, alkalis & inorganic solutions.
YHSP-SAR is a professional electronic leak point sensor designed to detect even small floor leaks quickly and accurately. It is optimized for the acid, alkali, and inorganic solution chemical family, delivering an alarm signal at the earliest stage of leakage to support rapid response and improve safety for equipment, assets, and workplaces.
Differentiated Technology (Key Features)
๐ง Optimized Detection by Chemical Family
โข Designed for chemical-family specific detection of acids, alkalis, and inorganic solutions while reducing unnecessary reactions in typical water environments (rain, condensation, etc.). (โป Water-detection option can be added depending on site requirements)
โก๏ธ Real-Time Ultra-Fast Detection
โข As soon as liquid enters the bottom area of the sensor, a specially designed conductor reacts, enabling real-time detection without missing even small leaks.
โป๏ธ Washable & Reusable for Better Cost Efficiency
โข No immediate disposal or replacement is required after leak detection. The sensor is designed for reuse after washing, helping reduce maintenance cost and improve operational efficiency.
๐ Complete System Monitoring
โข When integrated with a dedicated controller module, the system can monitor not only leak events but also cable breaks and sensor fault status in real time, improving system reliability.
๐ช Durability Optimized for Industrial Sites
โข Designed to diagnose leaks, cable breaks, and sensor damage in real time through controller-module integration. If an abnormal condition occurs, it automatically generates an alarm signal so operators can act immediately.
Product Brochure
Watch Real Leak Detection Test Videos
View test footage verified under real leak conditions, including sensor response and alarm operation.
| Item | Details |
| Model | YHSP-SAR (Electronic Leak Point Sensor) |
| Power Supply | DC 5V (supplied by controller module) |
| Measurement Range | 0 โ 3000 (sensor output level) |
| Output Type | Phase Shift |
| Detection Targets |
Acid, alkali, and inorganic solution chemical family: acids/alkalis (sulfuric acid, hydrochloric acid, nitric acid, caustic soda, etc.), inorganic solutions (hydrogen peroxide, etc.), and other conductive liquids |

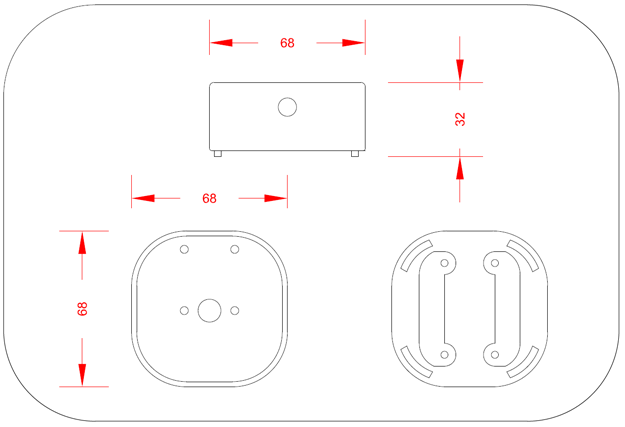

| Dimensions | ร68 x 32 (ยฑ 0.5)mm |
| Materials |
SUS304 (stainless steel), PP (polypropylene), and other chemical-resistant materials |
| Installation Areas |
Indoor/outdoor hazardous storage, beneath chemical piping, around tanks, trenches, etc. |
| Operating Temperature | -20 โ 60หC |
| Detection Performance | โข Alkali solutions: caustic soda (NaOH) 5%โ50% (response within 10 sec) โข Acid solutions: 7%โ98% sulfuric acid, hydrochloric acid, nitric acid, hydrofluoric acid, etc. (response within 10 sec) โข Inorganic solutions: hydrogen peroxide, etc. (response within 20 sec) |
| Key Points | โข Optimized detection by chemical family: acids, alkalis and inorganic solutions โข Non-reactive technology: prevents nuisance alarms by not reacting to water (can be configured to react to water if needed) โข System integration: works with a dedicated controller module โข Cost efficiency: reusable after simple water cleaning โข Reliability: real-time alarms for cable breaks and sensor damage |
View Installation Case Studies
Explore real industrial leak detection installations and get guidance on a configuration that fits your facility.
ย
ย
|
๐นYHSM-01S-AR (1-Channel Controller Module) |
๐นYHSM-04S-AR (4-Channel Controller Module) |
|
๐นYHWS-P01 (Base) |
๐นYHBK-P02 (Housing) |
ย
ย
|
|
|

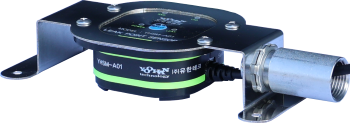

[Electronic Leak Point Sensor Housing Assembly Example]
ย
