๐ก Key Summary: Electronic leak point sensor with optimized detection by chemical family for organic solvents & oils
YHSP-SA is an electronic liquid leak point sensor engineered for chemical-family specific detection of organic solvent and oil leaks. It does not respond to water and detects leaks within 2 to 60 seconds, depending on the chemical. The replaceable YHS-FS sensor cartridge supports fast on-site replacement and a reusable sensor body, reducing maintenance costs. Use it with either a YHSM-01S-A (1-channel) or YHSM-04S-A (4-channel) leak detection control module.
๐ง Electronic leak point sensor for organic solvents & oils, YHSP-SA
Chemical family detection for organic solvents and oils, with a replaceable YHS-FS sensor cartridge.
YHSP-SA is an electronic leak point sensor that detects organic solvents and oil-based chemicals without responding to water. It detects leaks within 2 to 60 seconds, depending on the chemical, and is suitable for indoor and outdoor use around factories, tanks and piping.
Key Features
๐งช Optimized Detection by Chemical Family
โข Designed for chemical-family specific detection of organic solvents and oils without responding to water. Typical detection media include THF, acetone, IPA, toluene, MEK and xylene.
โก๏ธ Fast Response
โข Detects leaks within 2 to 60 seconds, depending on the chemical.
๐ง Replaceable Sensor Cartridge
โข The YHS-FS sensor cartridge is replaceable. The sensor body is reusable, supporting fast on-site cartridge replacement and reduced maintenance costs.
๐ช Control Module Integration
โข Use YHSP-SA with either the YHSM-01S-A (1-channel) or YHSM-04S-A (4-channel) leak detection control module for system operation.
๐จ Simple 2-Wire Connection
โข Observe the correct polarity when connecting the sensor: White: positive (+); Black: negative (-).
YHSP-SA is a practical solution that combines chemical-family specific detection and maintenance efficiency for building an organic solvent & oil leak monitoring system.
Product Downloads
Watch Real Leak Detection Test Videos
View test footage verified under real leak conditions, including sensor response and alarm operation.
| Item | Details |
| Model | YHSP-SA |
| Supply Voltage | DC 2.5 V |
| Measurement Range | โข A1: 0 ~ 100.0 Mฮฉ โข A2: 0 ~ 60.00 Mฮฉ โข A3: 0 ~ 6.000 Mฮฉ |
| Output | Level Shift |
| Target Liquids |
Organic solvents and oil-based chemicals, including NMP, MEK, toluene and gasoline |

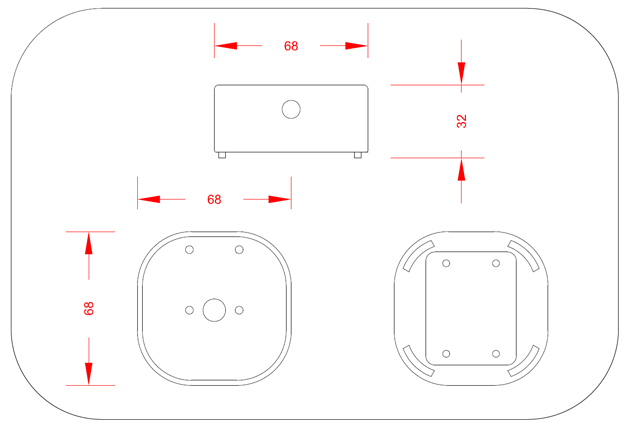

| Dimensions | 68 ร 68 ร 32 (ยฑ0.5) mm |
| Materials |
PP, carbon, etc. |
| Installation Environment |
Around factories, tanks and piping |
| Operating Temperature | -20 to +55 ยฐC |
| Typical Detection Media | Oils, organic solvents and VOCs, including insulating oil, engine oil, OMCTS, benzene and xylene |
| Response Time | Within 2 to 60 seconds (depending on the chemical) |
| Sensor Wiring | 2-wire sensor: White (+), Black (-) |
| Key Points | โข Chemical family detection: organic solvents and oil-based chemicals โข No response to water โข Control module integration: use either YHSM-01S-A or YHSM-04S-A โข Replaceable YHS-FS cartridge and reusable sensor body reduce maintenance costs โข 2-wire connection: White (+), Black (-) |
Industry-Specific Leak Detection Proposals
Semiconductors ยท Petrochemicals ยท Oil Refining ยท Batteries ยท Power Generation ยท Steel ยท Warehousing ยท Wastewater Treatment ยท Defense
View Installation Case Studies
Explore real industrial leak detection installations and get guidance on a configuration that fits your facility.
ย
ย
|
๐นYHSM-01S-A (1-Channel Leak Detection Control Module) |
๐นYHSM-04S-A (4-Channel Leak Detection Control Module) |
|
๐นYHWS-P01 (Positioning Base, Optional) |
๐นYHS-FS (Replacement Sensor Cartridge) |
|
๐นYHBK-P02 (Point Sensor Protective Housing, Optional) |
YHSP-SA must be used with either the YHSM-01S-A (1-channel) or YHSM-04S-A (4-channel) leak detection control module.
YHS-FS is the replacement sensor cartridge. YHBK-P02 protective housing and YHWS-P01 positioning base are optional accessories.
ย
ย
|
|
|
[Electronic Leak Point Sensor Housing Assembly Example]
ย
