๐ก Key Summary: All-in-One electronic leak point sensor with optimized detection by chemical family for acids, alkalis & inorganic solutions
YHSM-AR01 is an All-in-One electronic liquid leak point sensor that operates on DC 24 V without a separate control module. It provides chemical-family specific detection of acids, alkalis and inorganic solutions without responding to water. Response time is 2 to 60 seconds, depending on the chemical. Integrated SSR alarm output (N/O) and RS-485 (YH-BUS) communication support equipment integration. The all-in-one design simplifies installation and maintenance.

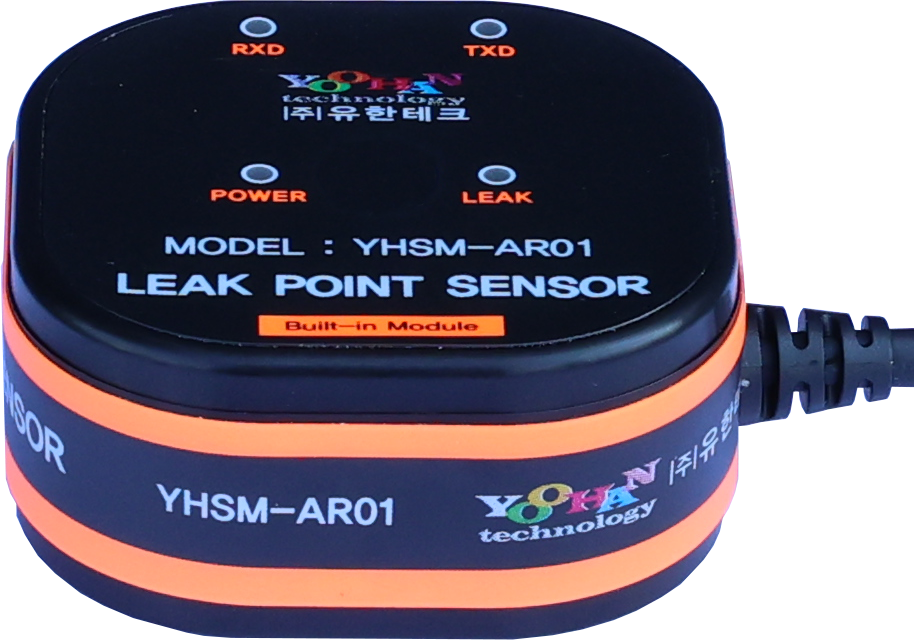

โจ All-in-One Leak Sensor | YHSM-AR01
Optimized detection by chemical family with a built-in controller for fast equipment integration.
YHSM-AR01 is an All-in-One electronic leak point sensor optimized for the acid, alkali, and inorganic solution chemical family. It operates without a separate control module and provides SSR alarm output (N/O) and RS-485 (YH-BUS) communication. The sensor does not respond to water and can be washed with water, dried and reused after detection.
Unique Selling Points of YHSM-AR01
๐ก Smart All-in-One Design
โข The all-in-one design integrates power input, alarm output and communication for standalone operation. It uses DC 24 V and requires no separate control module.
๐ฏ Optimized Detection by Chemical Family
โข Designed for chemical-family specific detection of acids, alkalis and inorganic solutions without responding to water. Typical media include sulfuric acid, hydrochloric acid, nitric acid, hydrofluoric acid, sodium hydroxide and hydrogen peroxide.
โก๏ธ Fast Detection & Response
โข Detects leaks within 2 to 60 seconds, depending on the chemical.
โป๏ธ Easy Cleaning, Reusable Operation
โข After detection, wash the sensor with water and dry it before reuse. The reusable design reduces replacement requirements and maintenance costs.
๐ก๏ธ RS-485 (YH-BUS) Communication
โข Provides an RS-485 (YH-BUS) communication interface for a host monitoring system (PLC / DCS / SCADA). Status indicators are RXD, TXD, POWER and LEAK.
The built-in controller simplifies installation and enables quick deployment of a chemical-family specific leak monitoring system for acids, alkalis, and inorganic solutions.
Product Downloads
Watch Real Leak Detection Test Videos
View test footage verified under real leak conditions, including sensor response and alarm operation.
| Item | Details |
| Model | YHSM-AR01 |
| Product Type | All-in-One Electronic Leak Point Sensor |
| Target Liquids | Acids, Alkalis and Inorganic Solutions |
| Power Input | DC 24 V |
| Alarm Output | SSR Alarm Output (N/O) |
| Communication | RS-485 (YH-BUS) |
| System Design | Integrated power input, alarm output and communication |
| Status Indicators | RXD / TXD / POWER / LEAK |

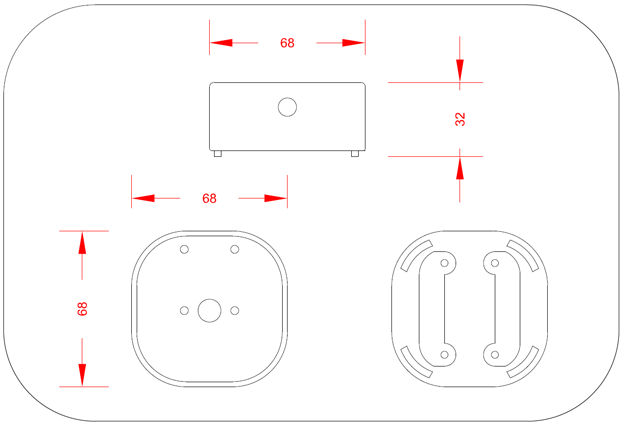

| Dimensions | 68 ร 68 ร 32 (ยฑ0.5) mm |
| Operating Temperature | -20 to +55 ยฐC |
| Operation | Standalone operation without a control module |
| Response Time | 2 to 60 seconds (depending on the chemical) |
| Typical Applications |
Pipes and valves; chemical storage tanks and areas; floors and trays; production lines and equipment |
| Typical Detection Media | Sulfuric Acid, Hydrochloric Acid, Nitric Acid, Hydrofluoric Acid, Sodium Hydroxide, Hydrogen Peroxide, Other Acids, Alkalis and Inorganic Solutions |
| Product Features | โข Chemical family detection: acids, alkalis and inorganic solutions โข No response to water; response time of 2 to 60 seconds (depending on the chemical) โข Standalone operation with SSR alarm output (N/O) and RS-485 (YH-BUS) communication โข Wash with water, dry and reuse after detection |
Industry-Specific Leak Detection Proposals
Semiconductors ยท Petrochemicals ยท Oil Refining ยท Batteries ยท Power Generation ยท Steel ยท Warehousing ยท Wastewater Treatment ยท Defense
View Installation Case Studies
Explore real industrial leak detection installations and get guidance on a configuration that fits your facility.
ย
ย
|
๐นYHSM-PSTG (Calibration Device for All-in-One Leak Point Sensors, Optional) |
๐นYHWS-P01 (Position Marking Base, Optional) |
|

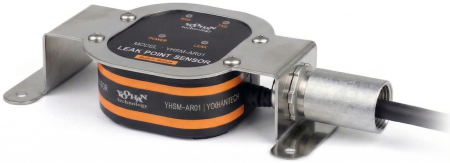

๐นYHBK-P02 (Point Sensor Protective Housing, Optional) |
ย
ย
|
|
|
[Electronic Leak Point Sensor Housing Assembly Photos]
ย
Liquid Leak Detector: Technical Inquiry
We confirm applicability and recommend solutions based on your target liquid and site conditions.
