๐ก Key Summary: Self-Alarming Wireless Leak Transmitter that Triggers On-Site Alarm and Sends Signals to a Receiver

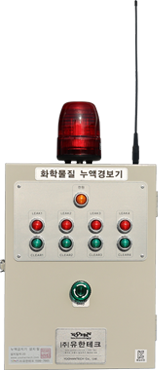

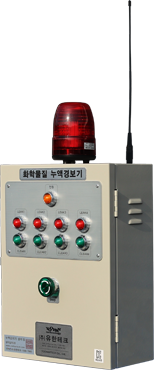

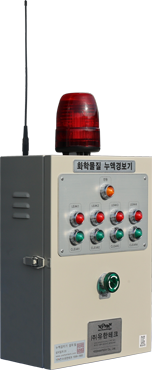

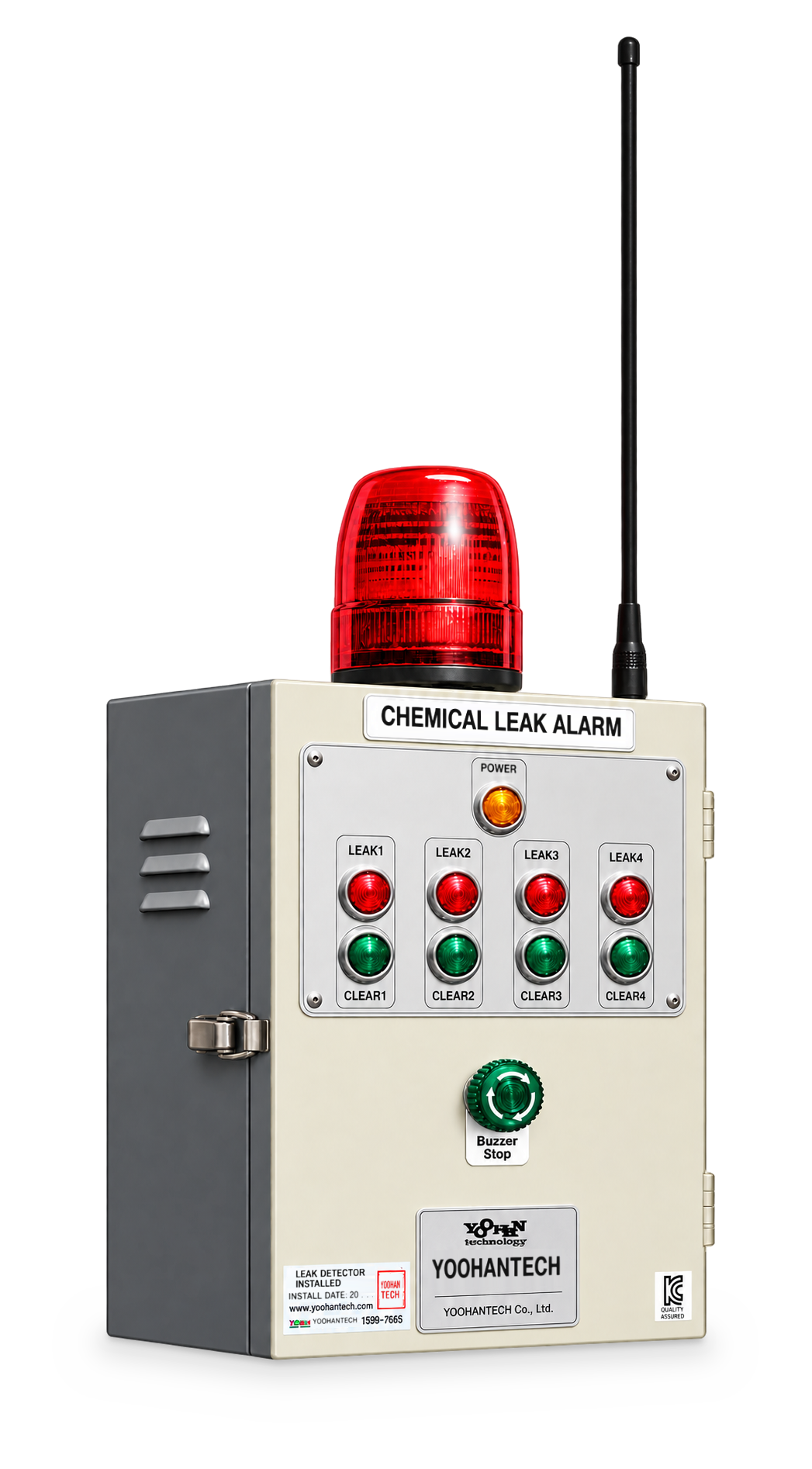

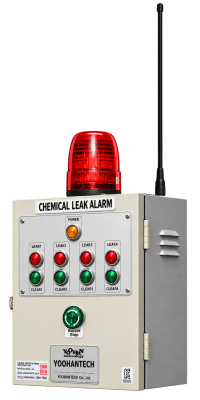

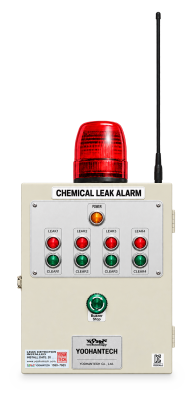

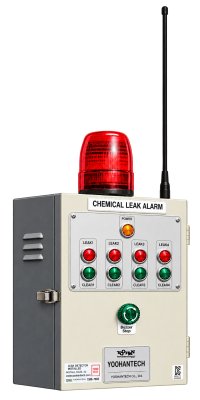

YH-RF410L TX is a self-alarming wireless transmitter that, when a leak detector (sensor) alarm occurs, wirelessly transmits the signal to a receiver/alarm system while simultaneously activating a signal tower light and buzzer on the transmitter unit itself. It supports 1โ10 channel expansion and a sensitivity adjustment function to match site conditions. With an optional backup power (battery), the alarm function can remain active during power outages and other emergency situations.
โ Dual Alarm (On-Site + Wireless Transmission): Sends wireless signals to a receiver while also activating the signal tower and buzzer locally for faster response.
โ Easy Wireless Installation: Ideal for areas where signal wiring is difficult. Supports easier installation, relocation, and expansion.
โ Sensitivity Adjustment Support: Adjustable sensitivity helps stable operation and reduces false alarms in varying site conditions.
โ Multi-Channel Expansion: Configurable from 1 to 10 channels to match site scale and number of zones.
โ System Consistency: Matches the design tone of Yoohantech standard leak alarm receivers (YH-100L series) for a unified system look.
ย
| Item | Specification |
| Model | YH-RF410L TX (Wireless Leak Alarm Transmitter with Signal Tower) |
| Power Supply | AC 220V 60Hz |
| Power Consumption | Max 20W |
| Power Indicator | Yellow lamp ON (Power ON) |
| Operation Indicator | Green lamp ON (Normal operation) |
| Alarm Indicator | Red lamp ON (Alarm activation) |
| Operating Temp./Humidity | -10โ40ยฐC, 0โ80% RH |
| Buzzer | 70dB or higher (at 1m distance) |
| Frequency | โข 447.8625โ447.9875 MHz band (Data transmission / 11 channels) โข 447.2625โ447.5625 MHz band (Safety system / 25 channels) |
| Receiving Sensitivity | -117 dBm (Tx power: +10 dBm) |
| Transmission Range | Over 1000m (Line-of-sight, 100% reception success, 4,800bps) |
| Antenna | SMA type external antenna |
| Channels | 1โ10 CH (Expandable) |
| Backup Power | โข Ni-Cd Battery 24V/1300mA (โค 6 channels): up to ~90 min โข Ni-Cd Battery 24V/1300mA (โค 10 channels): up to ~70 min โข Ni-Cd Battery 24V/2600mA (โค 20 channels): up to ~66 min |
โฃ Dimensions may vary depending on explosion-proof and warning light options. (Antenna excluded)
View Installation Case Studies
Explore real industrial leak detection installations and get guidance on a configuration that fits your facility.
ย

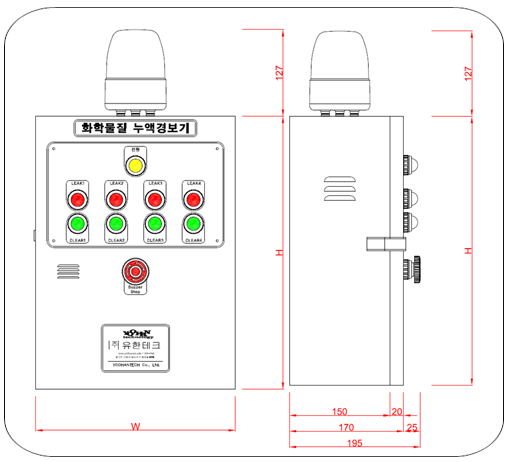

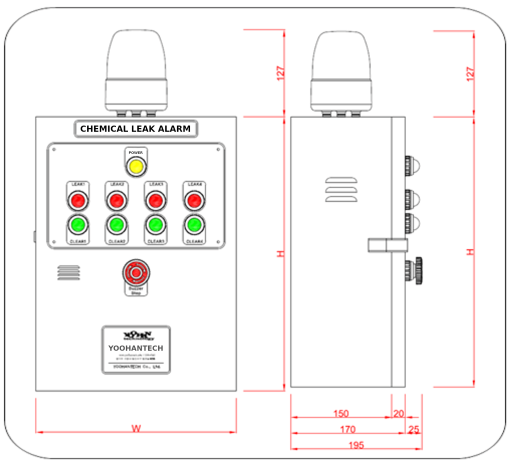

| Circuits | Dimensions |
| 1 | H: 207 x W: 370 mm |
| 2โ4 | H: 293 x W: 400 mm |
| 5โ6 | H: 379 x W: 400 mm |
| 7โ10 | H: 551 x W: 400 mm |
| 11+ | Custom-built upon request |
โฃ Dimensions may vary depending on explosion-proof and warning light options. (Antenna excluded)
