๐ก Key Summary: Stack lightโtype receiver that centrally manages multi-zone (1โ10 channels) leak alarms in one unit

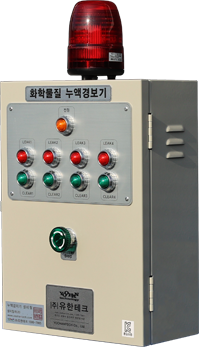

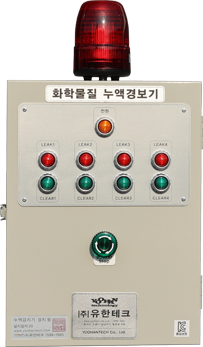

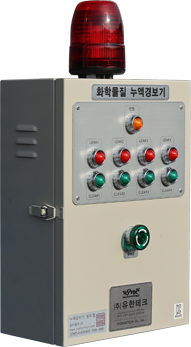

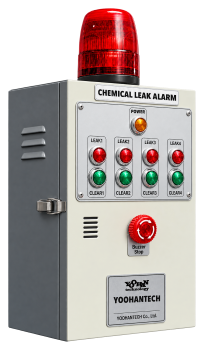

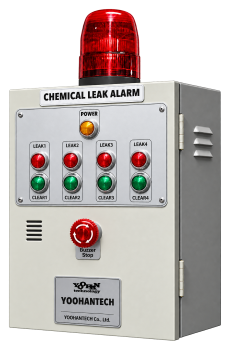

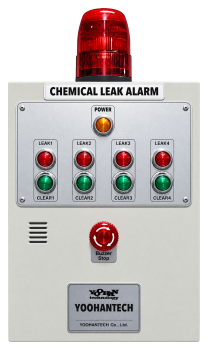

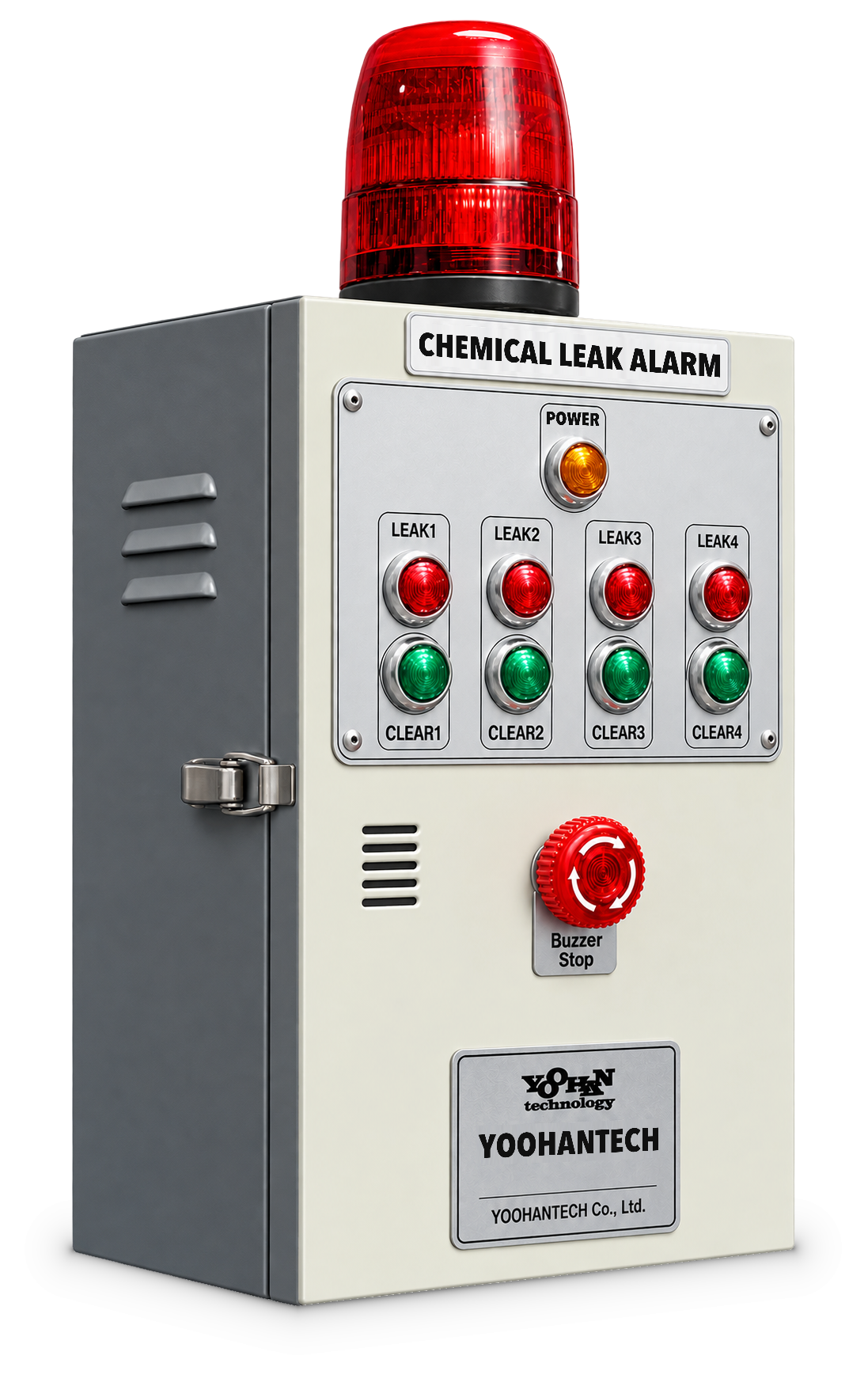

YH-100L is a leak alarm control receiver that receives leak/leakage sensor signals from the field for up to 10 channels and displays each zone status clearly using an LED stack light. When an alarm occurs, a buzzer (70 dB or higher) and indicator lights help operators quickly identify the incident location. Sensitivity and operating modes can be configured to match on-site operating conditions, supporting efficient safety management for industrial equipment and facilities.
โ Multi-channel centralized monitoring: Manage signals from 1โ10 channels (zones) on one panel for instant visibility of site leak status.
โ Flexible sensitivity adjustment: Adjust sensitivity to suit the target medium (water leakage, chemical solutions, etc.) for reliable operation under real site conditions.
โ Selectable operating modes: Configure alarm and recovery (reset) behavior to match the facility operation method, improving maintenance efficiency.
โ Intuitive status indication: Clearly indicates power/normal/alarm status with color lamps, and supports on-site response with an audible buzzer during alarms.
ย
| Item | Specification |
| Model | YH-100L (Stack Light Leak Alarm Control Receiver) |
| Power Supply | AC 220V 60Hz |
| Power Consumption | Max 20W |
| Power Indicator | Yellow lamp ON (Power ON) |
| Normal Indicator | Green lamp ON (Normal operation) |
| Alarm Indicator | Red lamp ON (Alarm activation) |
| Operating Temp. / Humidity | -10~40หC, 0~80% RH |
| Buzzer | 70 dB or higher (at 1 m) |
| Alarm Output | Relay contact (COM, NO) |
| Recommended Cable | VCT or CVVS, 0.75 sq or above recommended |
| No. of Channels | 1โ10 CH (Expandable) |
| Backup Power (Option) | โข Ni-Cd Battery 24V/1300mA (Up to 6 channels): approx. 90 min โข Ni-Cd Battery 24V/1300mA (Up to 10 channels): approx. 70 min โข Ni-Cd Battery 24V/2600mA (Up to 20 channels): approx. 66 min |
View Installation Case Studies
Explore real industrial leak detection installations and get guidance on a configuration that fits your facility.
ย

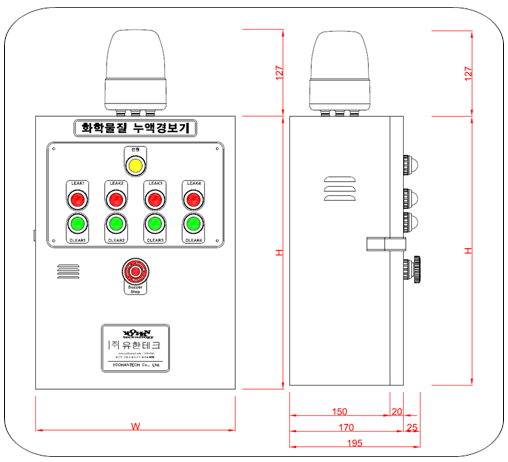

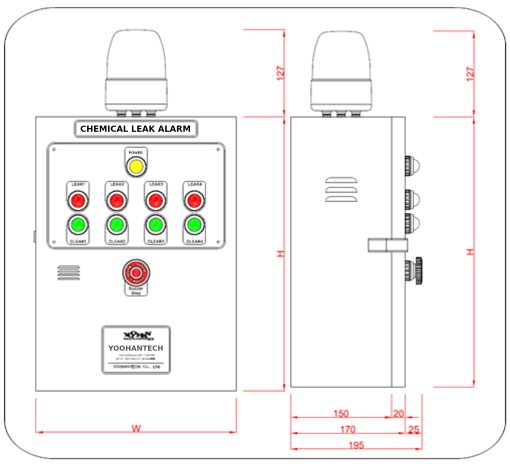

| No. of Circuits | Dimensions |
| 1 circuit | H: 207 x W: 370 mm |
| 2โ4 circuits | H: 293 x W: 400 mm |
| 5โ6 circuits | H: 379 x W: 400 mm |
| 7โ10 circuits | H: 551 x W: 400 mm |
| 11+ circuits | Made to order (Custom) |
โป Dimensions may vary depending on explosion-proof options and whether a warning light is added.
