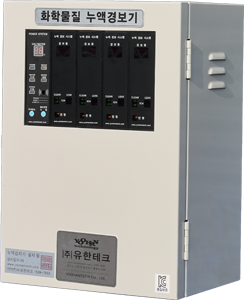

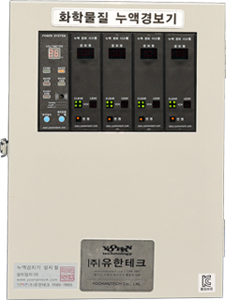

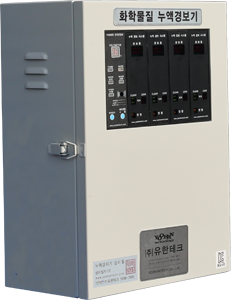

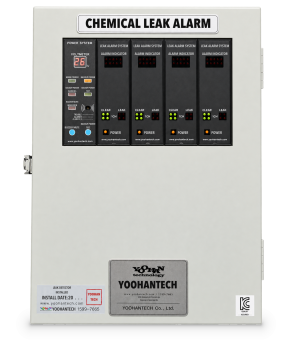

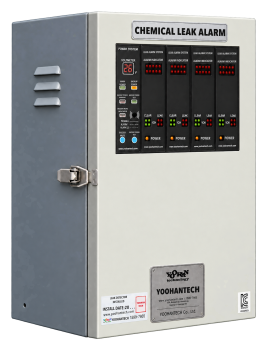

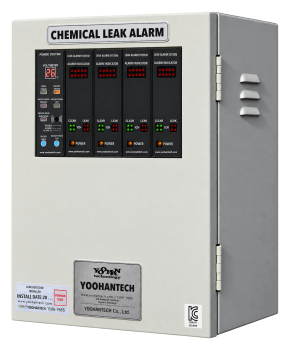

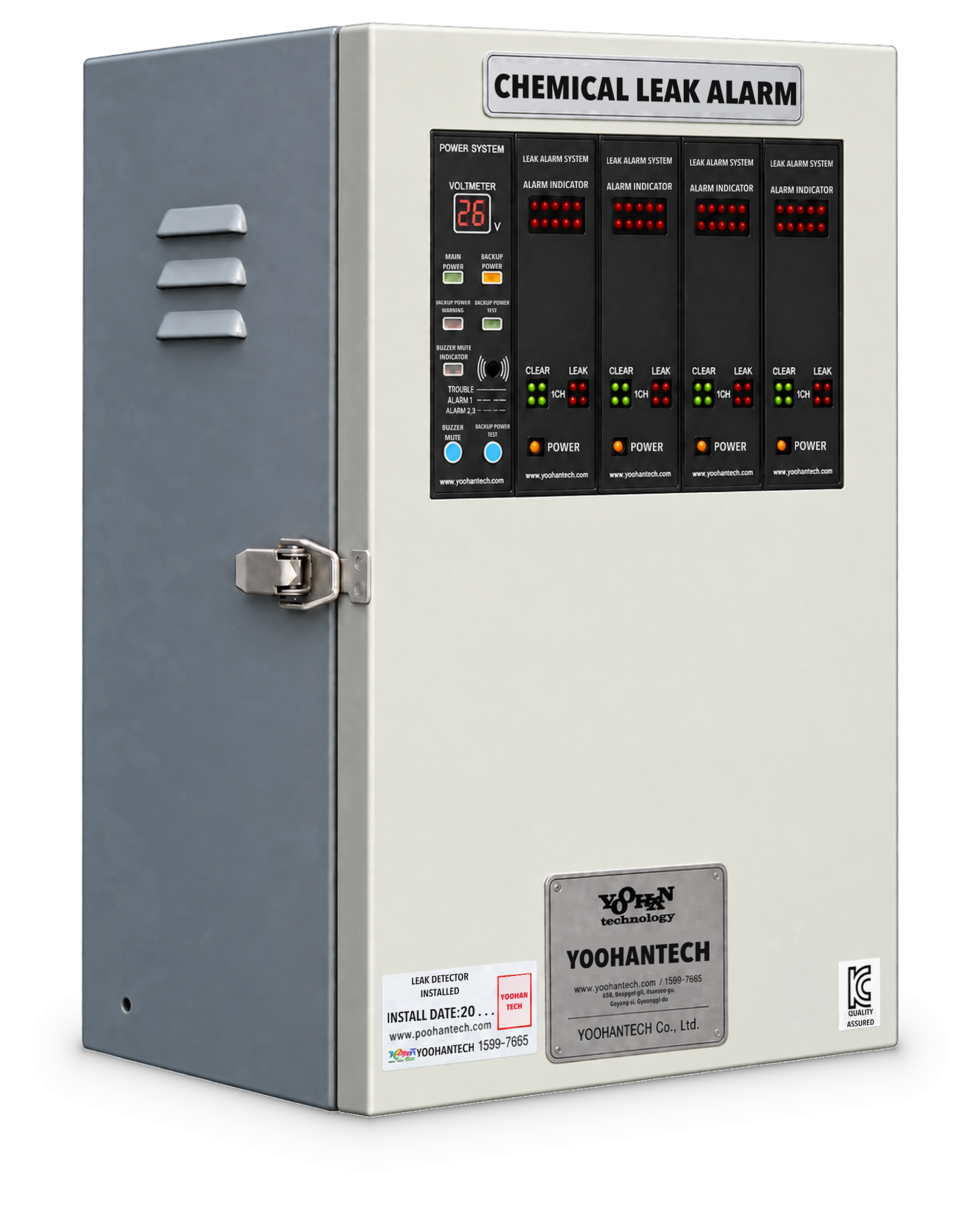

YH-200L is a multi-channel leak alarm control receiver built with a modular card (slot) architecture. The system can be expanded by installing additional detection cards to match the required number of channels, making maintenance and replacement simple and efficient.
It integrates with a wide range of leak detection sensors according to site scale and equipment layout, making it an ideal unified control solution for multi-zone safety monitoring in large plants, semiconductor fabs, chemical facilities, and other industrial environments.
โ Excellent scalability: The card-type design allows easy channel (circuit) addition and changes, enabling flexible system expansion.
โ Unified monitoring: Integrates multiple leak detection channels into a single control receiver, saving space while enabling organized alarm management.
โ Optimized configuration: Sensor sensitivity and operating modes can be precisely adjusted based on target liquid characteristics and site conditions.
ย
| Item | Specification |
| Model | YH-200L (Card-Type Leak Alarm Control Receiver) |
| Main Power Supply | AC 110V/220V, 50/60Hz (Standard: AC 220V, 50/60Hz) |
| Material | Carbon Steel |
| Back-up Power (Option) | โข Ni-Cd Battery 24V/1300mA (Up to 6 channels): approx. 90 min โข Ni-Cd Battery 24V/1300mA (Up to 10 channels): approx. 70 min โข Ni-Cd Battery 24V/2600mA (Up to 20 channels): approx. 66 min |
| Installation | Wall Mounting Type |
ย
| Unit | Item | Specification |
| Power & Charging Section | Input Power | DC 24V |
| Output Power | DC 24V (Back-up power: DC 27V/200mA) | |
| Main Power Indicator | Green LED lamp | |
| Back-up Power Indicator | Yellow LED lamp | |
| Back-up Power Warning Indicator | Red LED lamp | |
| Back-up Power Test Indicator | Yellow LED lamp | |
| Buzzer Stop Warning Indicator | Red LED lamp | |
| Buzzer Stop Button | External input (Remote Reset) โ Buzzer stop / Auto return function | |
| Back-up Power Test Button | Back-up power test switch | |
| Alarm Section | Operating Power / Current | DC 24V / Max 100mA |
| Input Type | NO input | |
| Status Indication | CLEAR (Green LED), LEAK (Red LED) | |
| Alarm Indication | LEAK red LED indication and alarm lamp red LED flashing | |
| Alarm Reset | Reset switch โ Auto or Manual (Manual-Reset switch) | |
| Alarm Output | Buzzer โ SPDT relay dry-contact signal output |
View Installation Case Studies
Explore real industrial leak detection installations and get guidance on a configuration that fits your facility.
ย

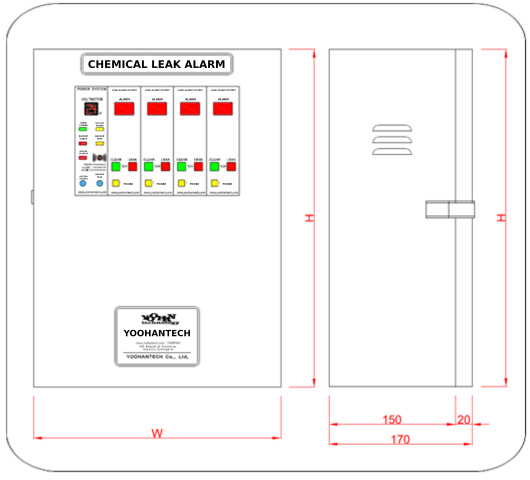

| No. of Channels |
Dimensions |
| 1โ2 channels |
H: 207 x W: 370 mm |
| 3โ4 channels |
H: 293 x W: 400 mm |
| 5โ6 channels |
H: 379 x W: 400 mm |
| 7โ8 channels |
H: 465 x W: 400 mm |
| 9โ10 channels |
H: 551 x W: 400 mm |
| 11+ channels | Made to order (Custom) |
โป Dimensions may vary depending on explosion-proof and warning light options.
