๐ก Key Summary: Intuitive Touchscreen Leak Monitoring with Real-Time Server Transmission via Ethernet

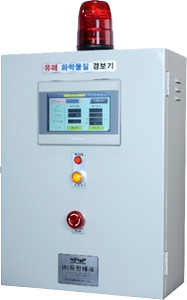

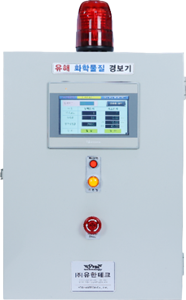

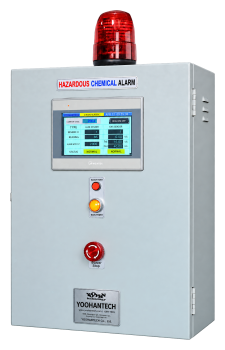

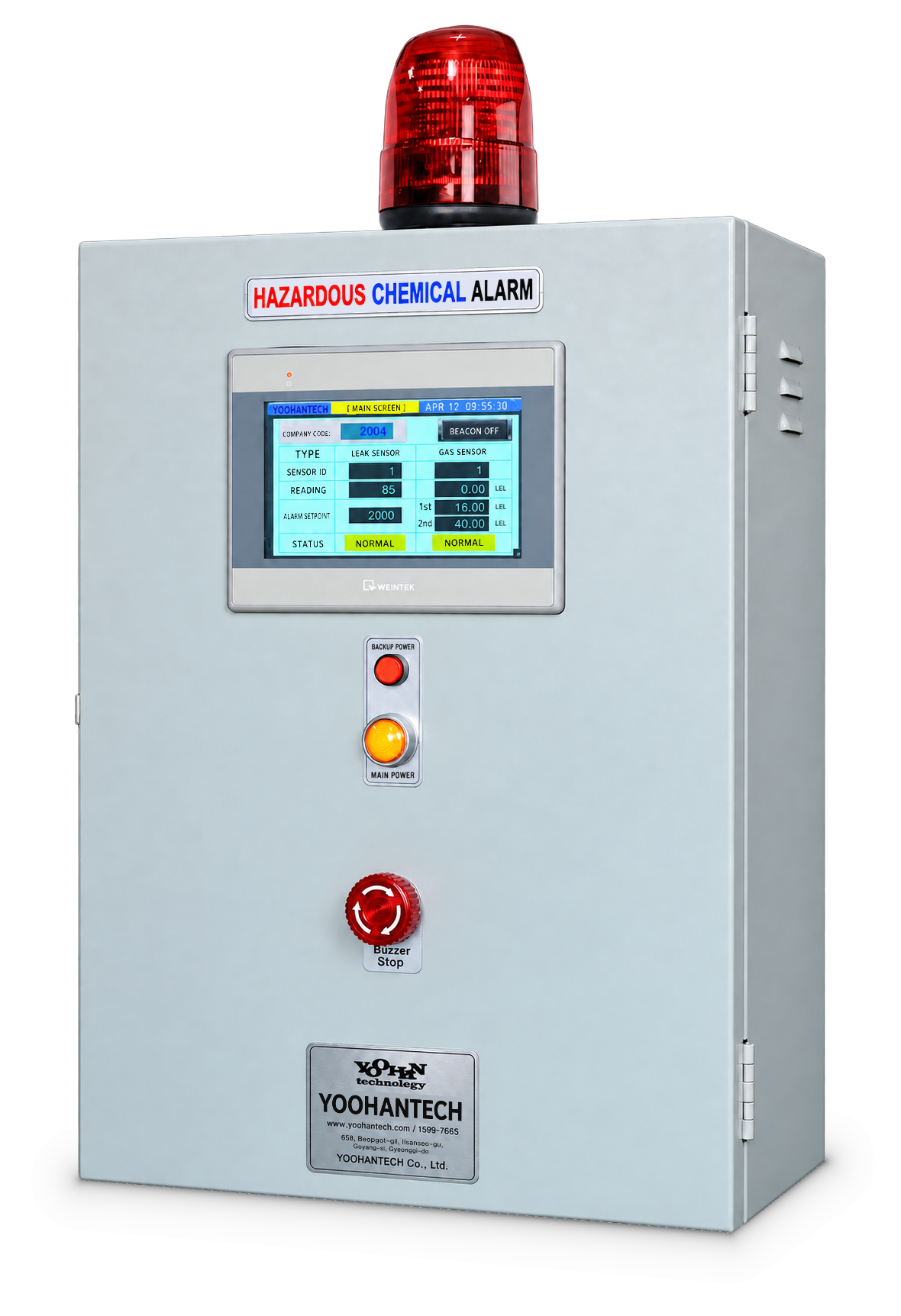

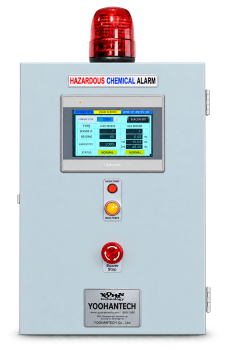

YH-TS600HP is a touchscreen-based leak alarm receiver designed to manage leak detection systems clearly and efficiently on site. Operators can view leak status and alarm history at a glance, while Ethernet communication enables real-time data transmission to an external server (central monitoring), making it ideal for building a monitoring platform. It supports efficient operation in environments requiring multi-channel leak safety management such as smart factories, large plants, laboratories, and production lines.
โ Touchscreen Leak Monitoring UI: Visualizes leak detection status on-screen to shorten on-site response time.
โ Real-Time Server Transmission (Ethernet): Sends leak alarm/status data to an external server for central monitoring and event history management.
โ Scalable Integration for Field Applications: Supports signal interfacing and communication settings to build a reliable leak safety monitoring system across different facility environments.
ย
| Item | Specification |
| Model | YH-TS600HP (Touchscreen Leak Monitoring Alarm Receiver) |
| Power Supply | AC 220V 60Hz |
| Power Consumption | Max 30W |
| Main Power Indicator | Yellow lamp ON (Power ON) |
| Backup Power Indicator | Red lamp ON |
| Display | Touch Screen Display |
| Operating Temp./Humidity | -10โ40ยฐC, 0โ80% RH |
| Buzzer | 70dB or higher (at 1m distance) |
| Backup Power | Ni-Cd battery DC 24V (Option) |
| Alarm Output | Relay contact COM/NO, Ethernet transmission |
| Recommended Cable | VCT or CVVS, 0.75mmยฒ or higher |
| Channels | โข Leak detectors: 1โ20 CH โข Multi-zone leak status visualization/management via touchscreen |
| Key Functions | โข Leak monitoring: visual display of leak detection status on touchscreen โข User-friendly operation: easy setup and status checks by touch โข Integration protocol support for connecting with other systems โข Server transmission: real-time leak data transfer via Ethernet โข Central monitoring: provides real-time status data to a central system โข Adjustable transmission interval via touchscreen โข Options: RS-232/485, Modbus, 4โ20mA output, individual contacts |

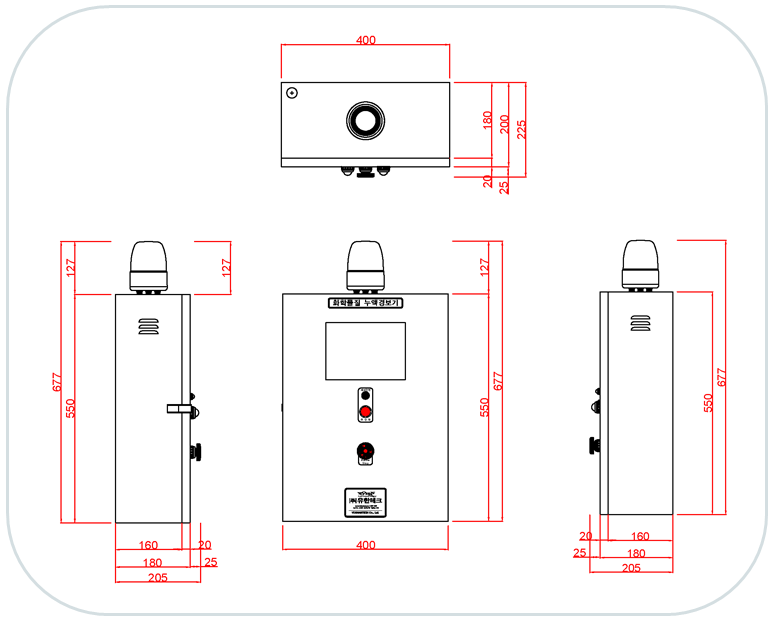

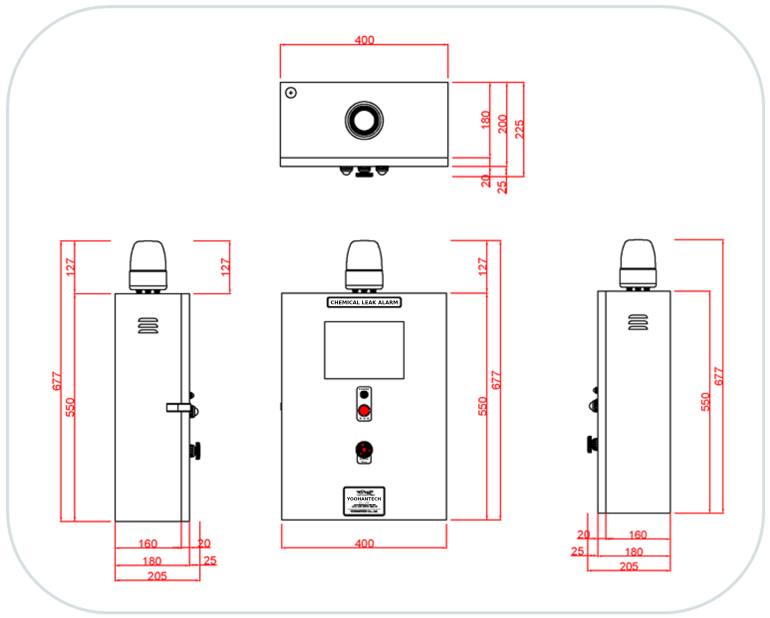

โฃ Dimensions may vary depending on explosion-proof and warning light options.
