Hello.

Your partner in industrial safety solutions, Assistant Manager Yoo at Yoohantech.

Today, we are sharing another installation review featuring our alkaline-dedicated Electronic Leak Point Sensor leak detection solution.

The site introduced here is a specialized manufacturer of key secondary battery materials, located in Gwangyang, Jeollanam-do.

Since this facility produces core battery raw materials such as nickel, cobalt, lithium, and MHP, rigorous safety management is required.

Because the handled media contains strong alkaline components, we selected and installed an “alkaline-dedicated electronic leak point sensor” system with excellent chemical resistance.

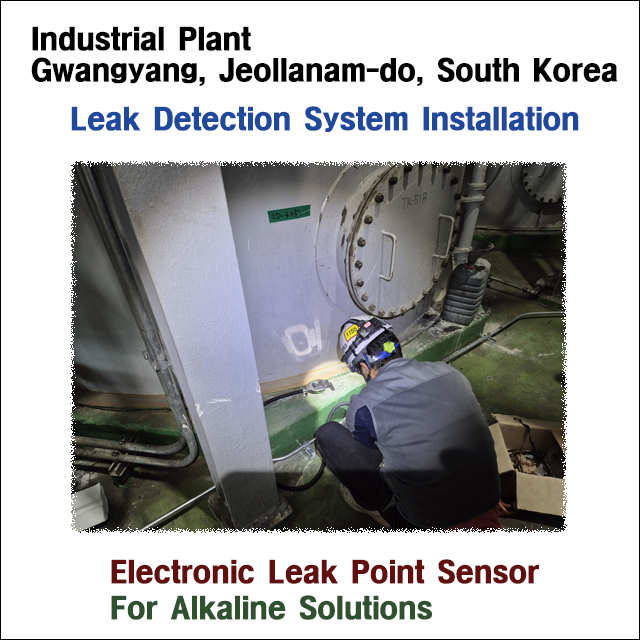

Now, shall we take a look at the safely completed leak detection installation site?

Although the work environment is humid and demanding, Yoohantech specialists carry out the installation carefully in accordance with applicable requirements and standards.

Since the plant interior is a non-Ex area, the conduit termination for the leak detection system was finished with “GW waterproof flexible conduit.” This improves installation convenience by allowing the sensor position to be relocated flexibly in the future when equipment layouts change.

Considering the plant’s humidity and chemical exposure, we custom-fabricated and installed the leak alarm control receiver enclosure using corrosion-resistant SUS (stainless steel).

This enables stable long-term operation of the leak detection system without concerns about corrosion, and the customer was very satisfied.

Looking inside the receiver, two 4-channel leak detection control modules, YHSM-04S-AR, are installed to manage multiple sensors efficiently.

A backup battery is also built in for emergency situations. Even in the event of a power outage, this backup battery keeps leak detection active for at least one hour, preventing any safety gap.

Thank you to the Yoohantech installation team for their hard work and dedication to customer safety, even in challenging environments.

This concludes our installation case for the leak detection system at a secondary battery materials plant in Gwangyang, Jeollanam-do.
